As Redmi’s 10th anniversary gift to the public, the K series has shown the greatest sincerity in history and equipped the K series “junior” with MediaTek’s strongest mid-range chip. Therefore, the world’s first Dimensity 8300-Ultra Redmi K70E That’s how it was born.
The Redmi K70E that came to the review room is the top-of-the-line 16+1TB version.
Before starting the review, let’s first take a look at the main features of K70E:
1. World premiere Dimensity 8300-Ultra
Redmi K70E is the world premiere of MediaTek’s new generation 4nm sub-flagship chip, Dimensity 8300-Ultra. The CPU of this chip abandons the Cortex-A78 large core and uses the new Cortex-A715+A510 cluster. Compared with the previous generation, the performance is improved by 20%. , power consumption is reduced by 30%.
The core number of the GPU remains unchanged. It is upgraded from the previous generation Mali G610 to G615. The main frequency is increased from 950MHz to 1400MHz. The peak performance is increased by 60% and the power consumption is saved by 55%.
Secondly, the new generation Dimensity 8300-Ultra is also compatible with the latest LPDDR5X 8533Mbps memory and UFS 4.0 flash memory, which is standard on the Redmi K70E.
2. In-depth tuning of Fury Engine 3.0
K70E is the first Redmi mobile phone equipped with Xiaomi Hyper OS . It pays more attention to the manufacturer’s software and hardware joint debugging technology, combined with the new Fury Engine 3.0, and is deeply empowered by the underlying layer of HyperOS Al subsystem, from performance scheduling, screen rendering, and game control. Dimension, ability jump.
3. 90W fast charging takes into account super-large batteries and the first starfish algorithm repair battery technology
The fast charging capability of the Redmi K70E has finally exceeded 67W. This time it has been directly upgraded to the same level as the Xiaomi Mi 14. With the support of 90W wired fast charging, it takes into account the fine tradition of the Redmi K series large battery and has a built-in 5500mAh ultra-large capacity battery.
Secondly, K70E launches the first repairable battery technology – Xinghai algorithm. On the one hand, it fully activates and utilizes the “lost live lithium” through the optimal allocation of battery charging parameters. On the other hand, at different stages of the battery cycle life, through Measures such as optimizing charging current, charging voltage and charging capacity can reduce damage to the positive and negative electrode materials of the battery, thereby reducing “dead lithium – material loss”.
A two-pronged approach to minimize lithium ion loss and extend battery life.
Design and Display

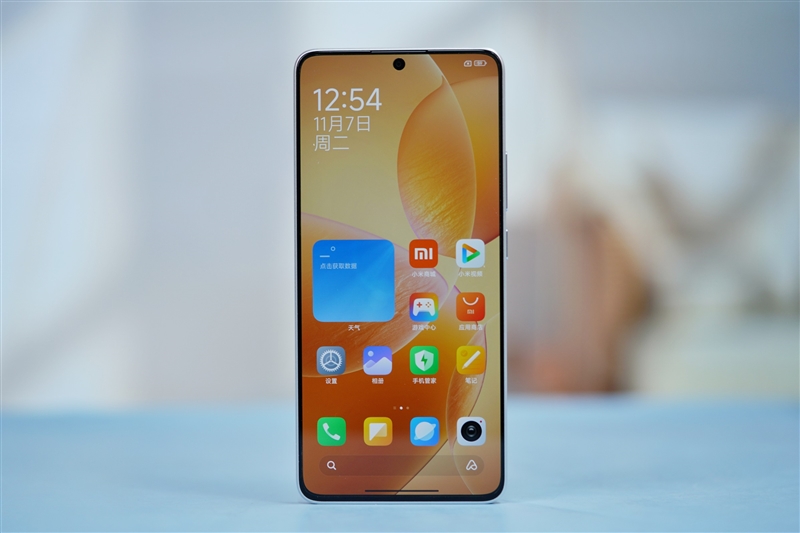

The front of the Redmi K70E uses a 6.67-inch flexible OLED screen. The second-generation 1.5K flagship direct screen eliminates the plastic bracket, greatly increases the screen-to-body ratio, and has a visual effect of nearly equal width on all four sides, giving people a very comfortable feeling.
The peak brightness of the K70E screen can reach 1800nit. It has passed professional primary color calibration at the factory. The screen Delta E color difference is 0.43, JNCD color difference is 0.31, 12-bit color depth, and the transition of colors is more delicate and soft.
The K70E screen supports a maximum refresh rate of 120Hz, the default touch sampling rate (single finger) is 240Hz, the game mode can reach 480Hz, and the instantaneous touch is 2160Hz.
The screen equipped with the K70E is arranged in pearls, with a resolution of 1220×2712, a standard PPI of 446, and an equivalent PPI of about 356.

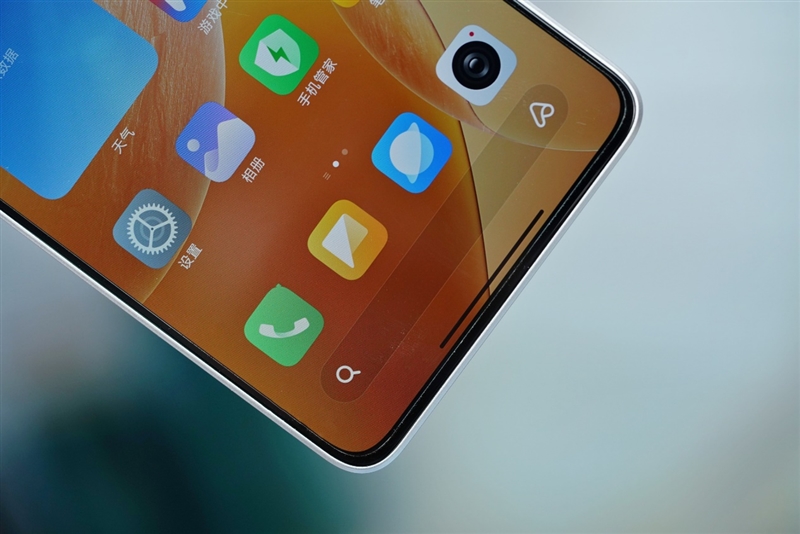

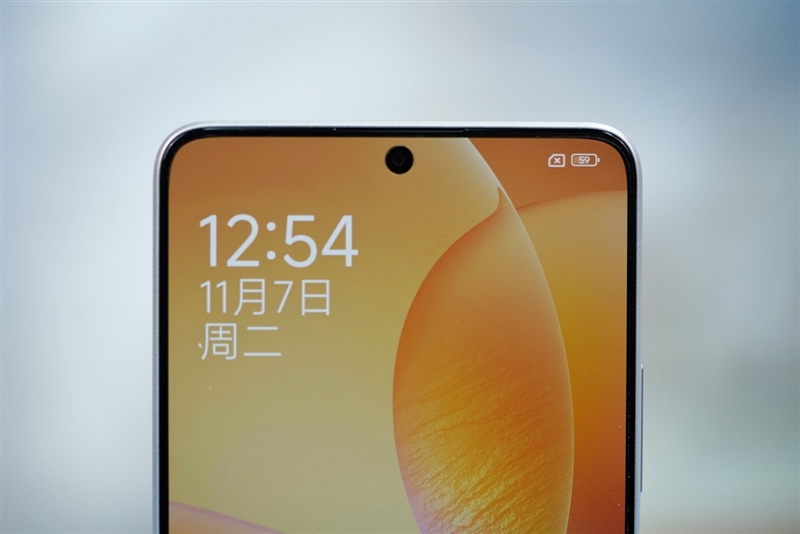

The K70E’s 16-megapixel front camera is located in the center of the top. The screen of the mobile phone adopts the COP packaging process, and the bottom frame is as narrow as 2.27mm. What we got at Kuai Technology is the Qingxue color scheme. The back of the phone is made of pure white glass, which is gentle and delicate to the touch and not easy to be stained by fingerprints.

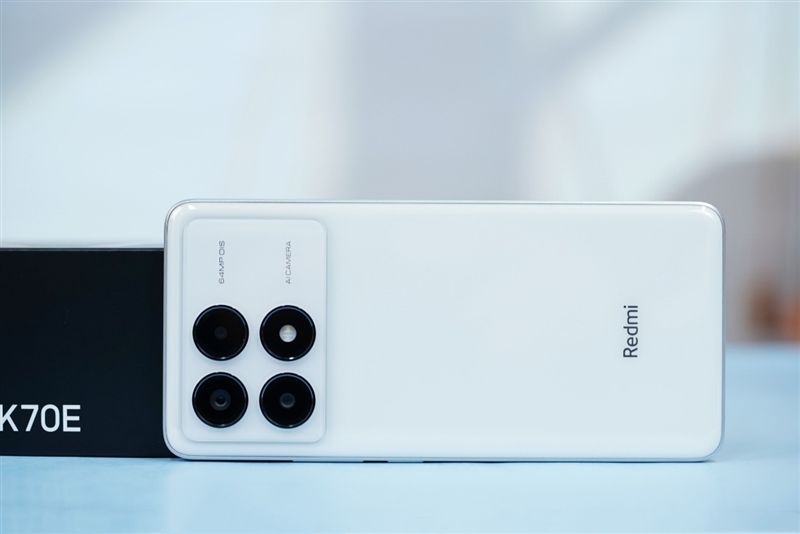

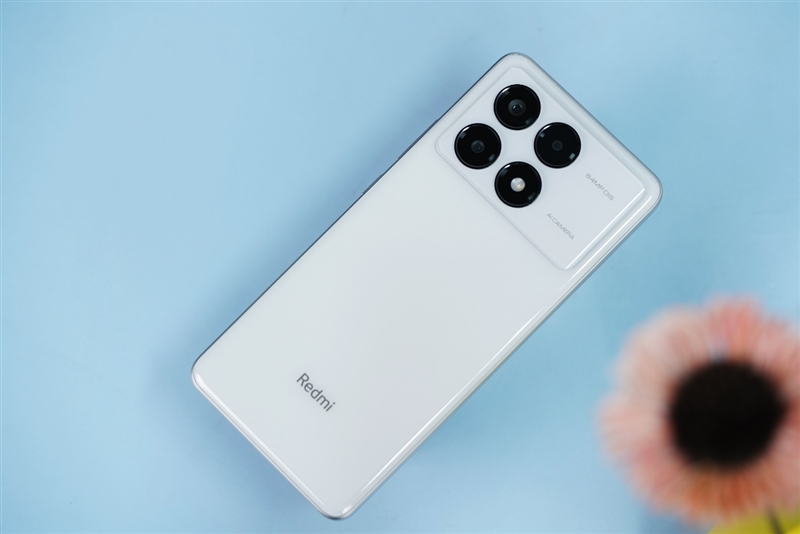

The three rear cameras, a 64-megapixel OIS main camera, an 8-megapixel ultra-wide-angle camera, and a 2-megapixel macro camera, are arranged in a matrix with a light sensor and a single LED fill light.

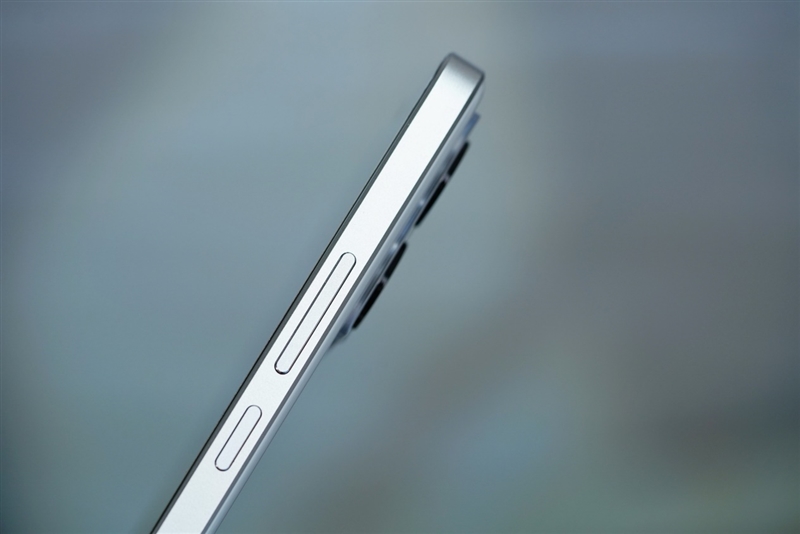

The volume buttons and power button of the phone are located on the right side of the phone. Last year’s K60E used side fingerprint recognition, and this year’s K70E has been upgraded to under-screen optical fingerprint recognition.

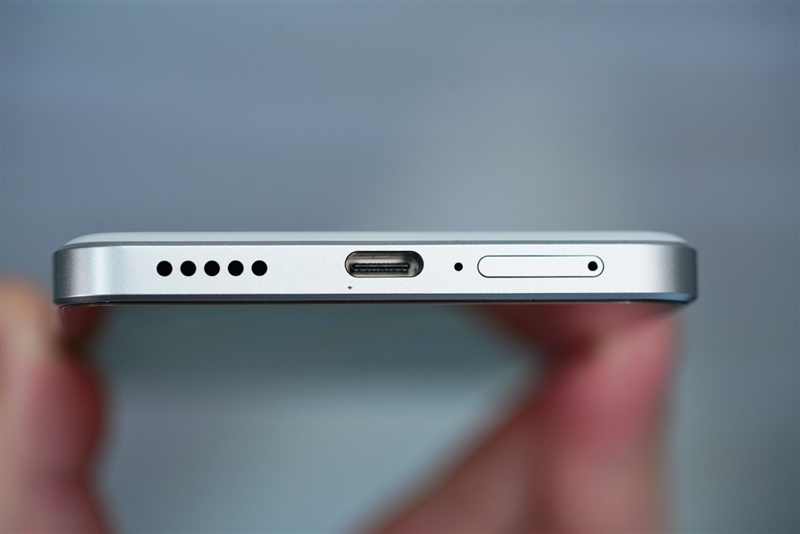

The top and bottom of the K70E are equipped with independent speaker openings, forming a stereo sound field. The top is equipped with an infrared remote control sensor and a noise reduction microphone, and the bottom is equipped with a microphone, Type-C and headphone two-in-one interface, a secondary microphone and a SIM card slot.
Redmi K70E has increased the wired charging power to 90W this time, and comes standard with a 90W super fast charging charger. Inside the package, in addition to the phone body and charger, it also comes with a black silicone phone case, SIM card pin and user manual.
Hardware and Performance
Redmi K70E won the first launch rights of the Dimensity 8300-Ultra platform, upgraded to the second-generation 4nm (N4P) process, and abandoned the previous-generation Cortex-A78+A55 architecture design and switched to the new Cortex-A715+A510 Architecture, both single-core and multi-core performance of the CPU have been upgraded.
Dimensity 8300-Ultra still adopts the “1+3+4” three-cluster architecture design, consisting of 1×3.35GHz Cortex-A715+3×3.2GHz Cortex-A715+4×2.2GHz Cortex-A510.
The GPU introduces a new Mali-G615 core. While maintaining 6 cores, the main frequency is still 1.4GHz. The floating point computing power is doubled, the triangle output capacity is doubled, and FP16 floating point hybrid The computing output capacity is doubled.
According to official statements, Dimensity 8300-Ultra’s CPU peak performance has been increased by 20%, while power consumption has been reduced by 30%. GPU peak performance has been increased by up to 82%, and power consumption has even been reduced by as much as 55%.
The AI module of Dimensity 8300-Ultra has been upgraded to APU 780, which directly inherits the key specifications and features of APU 790 of Dimensity 9300. The performance of integer and floating point operations has been increased by 2 times, and the Transformer operator acceleration has been increased by 8 times.
In addition, Dimensity 8300-Ultra also supports the same LPDDR5X 8533Mbps memory and UFS 4.0 flash memory as Dimensity 9200, and is compatible with multi-circular queue technology (MCQ), which is on par with last year’s Dimensity flagship chip.
The Redmi K70E we have is the top version, equipped with 16GB LPDDR5X 8533Mbps memory and 1TB UFS 4.0 flash memory.
In this regard, we also conducted theoretical performance tests and actual game tests on the Redmi K70E. During the test, we adjusted the screen brightness of the phone to 50%, turned off automatic brightness, turned off memory expansion, and turned on performance mode for testing.
Theoretical performance test

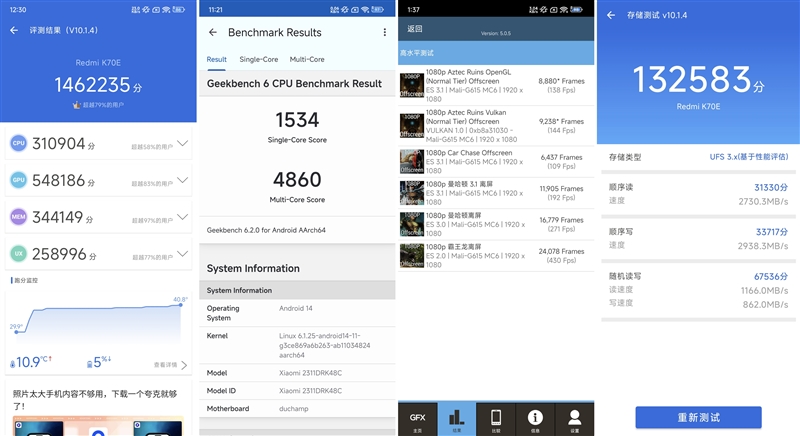

The first is the AnTuTu comprehensive test, with a total score of 1.462 million, ranking first in the mid-range mobile phone market.
Next, we conducted a single test on the CPU and GPU performance of Redmi K70E.
In the Geekbench 6 test, the Dimensity 8300-Ultra’s CPU single-core score was 1534 points, an increase of about 20.6% compared to the 8200. The multi-core score reached 4860 points, a year-on-year increase of about 19.9%. The multi-core performance even surpassed last year’s Qualcomm. Flagship chip Snapdragon 8+.
GPU test, GFXBench’s six 1080P projects, under continuous test conditions, the results are as follows:
- Aztec Ruins OpenGL: 138FPS
- Aztec Ruins Vulkan: 144FPS
- Racing chase frame rate: 109FPS
- Manhattan 3.1 off-screen: 192FPS
- Manhattan off-screen: 271FPS
- Tyrannosaurus Rex off-screen: 430FPS
Compared with the previous generation of Dimensity 8200-Ultra, this generation of Dimensity 8300-Ultra has very obvious advantages in graphics rendering capabilities, with an improvement of up to 89% and a performance improvement of nearly 100%.
Finally, we also conducted a flash memory read and write test on the K70E . The sequential read speed was 2.73GB/s and the write speed was 2.94GB/s, which is in line with the performance level of UFS 4.0.
Game actual test
Running scores can only represent theoretical performance, and the actual performance of the game can tell everything.
Next, let’s conduct actual game play to see how the K70E’s Fury Engine 3.0 adjusts to the Dimensity 8300-Ultra.
For game testing, we selected three representative mainstream mobile game masterpieces with low, medium and high loads, namely “Honor of Kings”, “Peace Elite” and “Genshin Impact”, in an indoor office environment of 23 degrees Celsius. Next, the test was conducted with frame rate priority, and the frame rate, power consumption, energy efficiency ratio and body temperature performance during the game were recorded.
1. King of Glory
We first tested the lower-load Honor of Kings mobile game, using extremely high frame rate testing in extreme image quality. The game ran at 964×2146 resolution and 120 frames. After a fierce team battle, you can see the screen The frame rate is very stable, with only a slight fluctuation, but it does not affect the stability of the picture. The final average frame rate is maintained at 119.6FPS, with an average fluctuation of 0.6.
The average power consumption is about 3.31W, the frame energy consumption is 27.7mW, and the energy efficiency ratio is 36.1FPS/W. Compared with Dimensity 8200, the energy efficiency ratio has increased by about 8.8%.
In terms of temperature, the maximum temperature on the front of the fuselage is 39.1 degrees Celsius, and the maximum temperature on the back is 39 degrees Celsius. You will feel a little bit of heat when holding the phone with both hands while playing games.
2. Peace Elite
Then we tested the medium-load mobile game Peace Elite, which could turn on 90 frames in smooth image quality. After a team battle, the frame rate curve was also very stable, with the average frame rate maintained at 89.2FPS, close to full frame, and the average fluctuation was only There are 0.9.
In terms of power consumption, the average power consumption has reached 4.32W, the frame energy consumption is 48.14mW, and the energy efficiency ratio is 20.6FPS/W. Compared with 8200, the energy efficiency ratio is about 13.9% worse.
The maximum temperature on the front of the fuselage is 40.6 degrees Celsius, and the maximum temperature on the back is 40.5 degrees Celsius.
3. Original God
This time, the Dimensity 8 series chip finally managed the high-load Genshin Impact mobile game with ease, running the map and fighting monsters at the same time. The average frame rate was stable at 59.8FPS, with an average fluctuation of only 0.9. There was almost no screen jitter during the game.
Then I checked the power consumption. The average power consumption was 5.94W, which is close to 6W. However, the energy efficiency ratio still reached 10.1FPS/W, which is a relatively ideal result.
In terms of temperature, the maximum temperature is 43.3 degrees Celsius on the front and 44.1 degrees Celsius on the back. The high temperature areas are mainly concentrated around the camera module.
Cameras
Redmi K70E has three rear cameras. The main camera has been upgraded from the previous 48-megapixel IMX582 to a 64-megapixel OV64B lens. It has a 1/2-inch photosensitive unit and supports OIS optical image stabilization. The ultra-wide-angle lens is an 8-megapixel OV08D10, coupled with a 2-megapixel macro lens.
Redmi K70E’s OV64B main camera, with the blessing of Dimensity 8300-Ultra’s 14-bit HDR-ISP Imagiq 980 image processor, displays more dazzling colors in daytime scenes, but the color reproduction is still relatively accurate. High-rise buildings and The sky behind has become more layered, but when faced with the light, the sample is still a bit white.
The 8-megapixel ultra-wide-angle lens automatically corrects distortion. Although the picture may be a little narrow, it can still show the tension of the photo when facing some wide architectural spaces.
Battery
Redmi K70E not only maintains the large 5500mAh battery of the previous generation, but also increases the charging power to 90W.
In this regard, we also conducted a series of tests on the charging speed and battery life of the mobile phone.

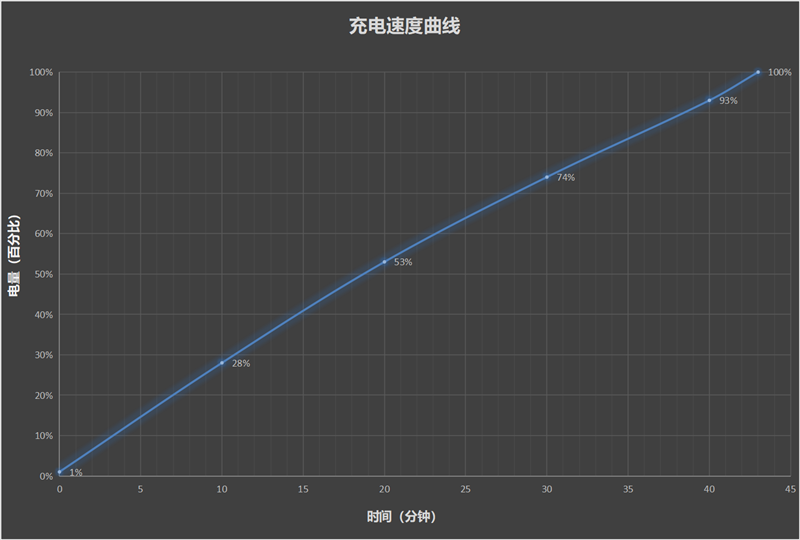

Charging test
Before charging, we first activate the fast charging acceleration function in the mobile phone manager, and the words “90W MAX” will be displayed in the charging interface.b. The Redmi K70E battery test started from 1%, charged to 28% in 10 minutes, 53% in 20 minutes, 74% in half an hour, and finally fully charged in 43 minutes. With this charging speed, when the phone is out of power, it can recover more than half of its health in the time it takes to go out for a meal, ensuring our daily use experience.
Endurance test
For battery life testing, we use a professional battery life testing tool – Battery Dog produced by Kuai Technology.
In the test items, the 20% power test will be performed by default . At the same time, all test items including CPU high voltage, CPU multi-threading, AI recognition, picture browsing, video playback and web browsing will be checked to simulate user usage scenarios. , to restore the real load to the greatest extent and be infinitely close to the real power consumption.
During the test, in order to ensure that the environmental variables tested for all models remain consistent and the test results are accurate, Battery Dog will automatically adjust the screen brightness to 50%, turn off automatic brightness, and adjust the volume to 30%.
After continuous uninterrupted testing by Battery Dog, the Redmi K70E battery was tested from 100% to 20%, and the battery life was 6 hours, 58 minutes and 18 seconds, which is close to 7 hours. After calculation, the full battery life is about 8.5 hours, which is enough for users to use it for one day.
Verdict
As a new-generation performance pioneer, we did not expect the Redmi K70E to win the first launch rights of Dimensity 8300-Ultra. After all, the previous Dimensity 8 series chips were first launched by OV.
Redmi K70E, as the new generation of flagship model from 2023 to 2024, is not only more radical in performance but also has image upgrades, screen upgrades, and charging upgrades. This generation of Redmi has made comprehensive innovations in all aspects.
After this period of experience, we make the following summary of Redmi K70E:
The Dimensity 8000 series has always been a high-profile representative of sub-flagship chips. The new generation of Dimensity 8300-Ultra fully inherits the flagship features of Dimensity 9300. The same flagship process, memory flash specifications, ISP, Al architecture, etc. are completely inherited from the same origin.
Redmi K70E is the world premiere of Dimensity 8300-Ultra. After in-depth joint debugging with MediaTek, the measured GPU performance has nearly doubled compared to the previous generation. The overall performance has surpassed last year’s Qualcomm flagship chip full-blooded Snapdragon 8+. , which can be called the Dimensity chip with the largest performance improvement in history.
After actual game testing, Dimensity 8300-Ultra achieved Genshin Impact full-frame output for the first time among 8-series chips. However, the prerequisite for full frame is high power consumption and high heat. Of course, this is also inseparable from Redmi’s Fury Engine 3.0. Optimization and performance first have always been Redmi’s genes.
In other words, Dimensity 8300-Ultra is simply the twin brother of Dimensity 9300, truly invincible in its class.
Equipped with OIS optical anti-shake and new CMOS, the imaging capabilities of Redmi K70E have been greatly improved compared to the previous generation K60E in terms of noise control and night imaging.
In terms of charging and battery life, while maintaining a large 5500mAh battery, the fast charging power has been increased to 90W, which is consistent with this year’s Xiaomi super-large model 13 Ultra. It can be fully charged in 43 minutes, which also makes this model sell for less than Mid-range mobile phones starting at 3,000 yuan enjoy a flagship-level charging experience.
In summary, Redmi has fully upgraded the hardware specifications, such as 1012+1216 three dimensional dual speakers, 0809 type The hardware configuration has been raised to a new level, which also makes the Redmi K70E, which has sufficient performance, screen, and imaging, become the most comprehensive among the Chinese smartphones in the price range of around 2K. cup mobile phone.
